Jacarta has been supplying environmental monitoring devices and systems to the IT industry since 1999. Jacarta interceptor environmental monitoring devices can be equipped with remote temperature, humidity, water leak, smoke, voltage and security sensors. Computer room monitoring solutions can include both power monitoring equipment and environmental monitoring devices.
All Jacarta products are designed for easy, out-of-the-box operation. The product philosophy is to provide highly reliable solutions that are not only straightforward to install and use, but also extremely cost-effective.
Videos
Videos
-
Data Centre & Server Room Monitoring - Jacarta interSeptor Pro
-
Computer Room Monitoring - Jacarta interSeptor
-
Jacarta Temperature & Humidity Sensor for Computer Rooms, Server Rooms and Racks
-
Jacarta Go-Probe Water Detection Sensor
-
Jacarta Go-Probe Smoke Detector
-
Jacarta Go-Probe Security Sensor
-
Jacarta Go-Probe Power Sensor
Preventing Computer Rooms orData Centre Disaster
![](https://old.nss.gr/wp-content/uploads/2018/07/jacarta-sensors-uai-258x169.png)
Crucial to any business continuity strategy is the implementation of an effective monitoring and alerting system. Air-conditioning failure, water ingress, fire, power failures and physical security breaches are just a few of the many potential problems that seriously threaten the integrity of network hardware and data. In situations where rooms are unmanned for any length of time, especially at weekends and overnight, these problems can, if left unattended, result in significant network downtime and cost. Jacarta interSeptor systems provide an advanced, yet uncomplicated solution to monitoring and early-warning alarm notification. Environmental conditions can be monitored and logged, alarm thresholds configured, and automated early-warning alerts delivered to key IT personnel via telephone voice messages, SMS, email, web browser and SNMP traps. An Alarm Beacon/Sounder option is also available for on-site visual and audible alerts if required.
![](https://old.nss.gr/wp-content/uploads/2018/07/noun_installation_1676661_000000-uai-258x258.png)
Installation
InterSeptor systems have been designed for ease of installation and use. Multiple temperature/humidity sensors are provided out-of-the-box to ensure individual rack and room monitoring can begin immediately.
![](https://old.nss.gr/wp-content/uploads/2018/07/noun_Magnifying-Glass_172365_ffffff-uai-258x258.png)
Monitoring
Monitoring of the interSeptor Pro can be carried out over the internet using a web browser or via a Network Management system using SNMP.
![](https://old.nss.gr/wp-content/uploads/2018/07/noun_Bell_1788878_ffffff-uai-258x258.png)
Alerts
Email and SNMP alerts can be triggered to provide early warning of environmental conditions. In addition, voice alerts to mobile/landline telephones, and SMS alerts is possible to be activated.
![](https://old.nss.gr/wp-content/uploads/2018/07/noun_Graph_31054_ffffff-uai-258x258.png)
Logging/Graphing
The capacity to extensively log environmental information and events via interSeptor systems ensures that ongoing problematic conditions can be analysed in detail and remedial action taken.
Sensors
interSeptor systems have been designed for ease of installation and use. Multiple temperature/humidity sensors are provided out-of-the-box to ensure individual rack and room monitoring can begin immediately as well as many others, essential for your environmental monitoring needs. Alternative cable lengths are available with all Jacarta Go-Probe sensors if required.
Jacarta Temperature and Humidity Sensor
Each interSeptor is supplied with the required number of temperature/humidity sensors for the version purchased. i.e. 8, 16 or 24. Two optional Go-Probe sensors can also be connected to each temperature/humidity probe from the range of sensors detailed below. High/low warning and critical alarm thresholds can be easily configured via the interSeptor Pro’s web browser interface.
![](https://old.nss.gr/wp-content/uploads/2018/07/jacarta-temp.png)
Jacarta Water Detector
The Jacarta interSeptor Pro water detector uses an advanced leak detection cable to sense the presence of water along its length. The water detector can be supplied with either 3 or 18m of sensor cable and 4m of interface cable.
![](https://old.nss.gr/wp-content/uploads/2018/07/jacarta-water.png)
Jacarta Security Sensor
The Jacarta interSeptor Pro Security Sensor is a magnetic reed switch that can be used to detect the opening of doors, racks, windows and cupboards.
![](https://old.nss.gr/wp-content/uploads/2018/07/jacarta-security.png)

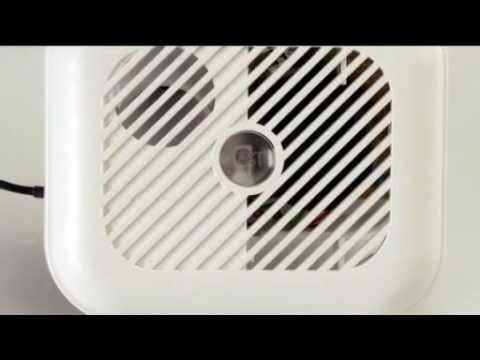

Jacarta Smoke Detector
The Jacarta interSeptor Pro Smoke Detector is a mains powered, ionisation based smoke detection unit that can be positioned to monitor for early signs of fire, providing both an interSeptor alarm and an audible alarm upon detection. This sensor is provided with either a 4 or 18m interface cable.
![](https://old.nss.gr/wp-content/uploads/2018/07/jacarta-smoke.png)
Jacarta Voltage Sensor
The Jacarta interSeptor Pro Voltage Sensor can be used to monitor spare power outlets for outages and interruptions. As soon as power to the outlet is lost the interSeptor will provide an alarm. This sensor is provided with either a 4 or 18m interface cable.
![](https://old.nss.gr/wp-content/uploads/2018/07/jacarta-power.png)
There are many different flavors of the Interceptor Systems, call us today to find which one is good for your case !
